Cubo 18:
Cubo 18 is a multi purpose, stand alone bass bin that, like Cubo 15, will equal or out run a single 18" BR*, of similar size, from ~ 40 Hz and up in terms of sensitivity. Cubo 18 works with a wide variety of 18” drivers. It has a cut list from just over a single 18 mm*** sheet (244 x 122 cm) / (8' x 4') with a single angled cut. Cubo 18" realizes a cost effective, small and light weight enclosure following the KISS-principle.
Development:
In 2007 the first prototype was build and tested. Cubo 18" is the 5th prototype in a line of hybrids aiming at the achievements as stated above.  Cubo 18 Standard and Cubo 18 Extended will both work with a wide variety of drivers, if uncertain which one will be most suited, build Cubo 18 Extended or mail me at This email address is being protected from spambots. You need JavaScript enabled to view it.
Size: 62x62x65cm (HxWxD)
Frequency: From 40 Hz up to 110 Hz
Enclosure Type: Hybrid

3D Model (by K-M-Sound-System):

Cubo 18 Rebated 6mm:



Cubo 18 Extended Rebated 6mm:


Footnotes: 18” drivers preferably with an EBP of 100 or higher; Fs (22-42 Hz), Qts (0.25 - 0.58), Vas (200 - 450 L) / (7.4 – 16.7 ft^3). Where EBP = Fs / Qts . Measurements will follow.

Cubo 18/15 (difference): Cubo 18 is 3 cm (/ 1 1/6th inch) deeper then Cubo 15. Due to phase similarities Cubo 18 and Cubo 15 can be  used together without noticeable issues. Cubo 18 has on average slightly more output for a given input in comparison with Cubo 15 (based upon electro-mechanical relatively similar drivers), especially between Fc high and Fc low,whilst Fc high and Fc low, remain similar (= cut-off frequency).



 Cubo 18: Front view
alt

Cubo 18: Side view without side panel
alt

Cubo 18: Driver for comparison
alt

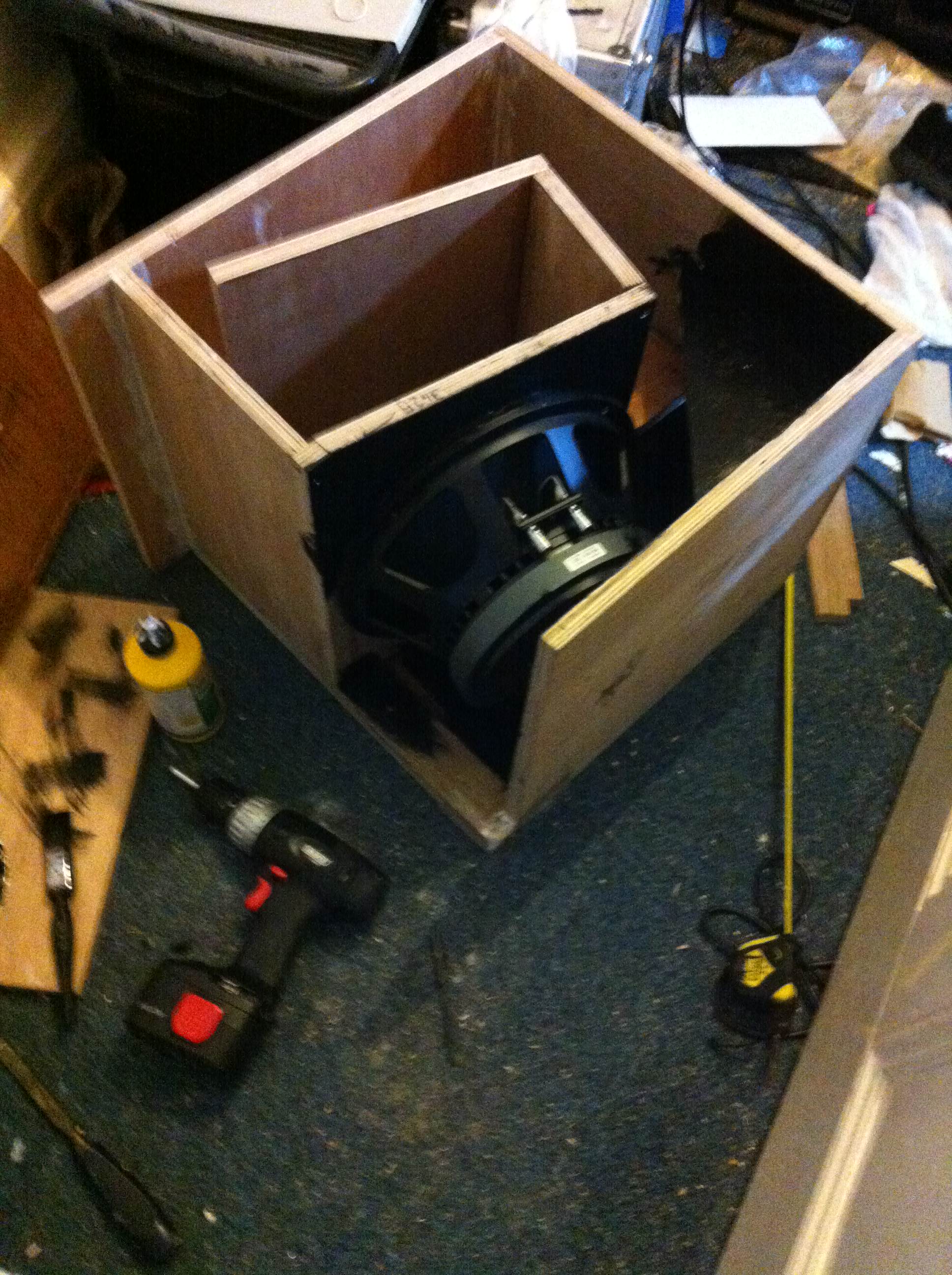

Cubo 18: Detail magnet and bracing
